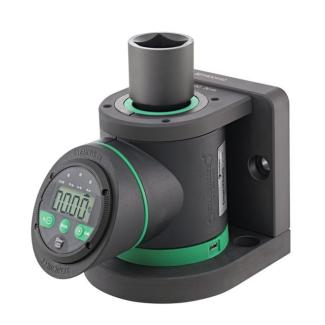

Torque controllers

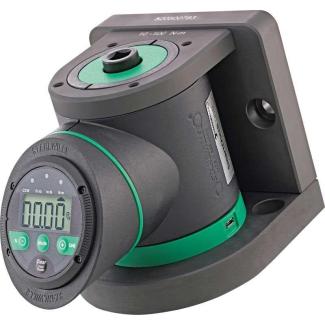

compact design
for horizontal or vertical mounting
The display, display bracket, and base housing can be rotated 180°
Micro USB interface for data export and power supply
Includes SmartCheck USB CheckMaster software for transferring values and generating test certificates
Three operating modes (Track, First Peak, Peak Hold)
For testing torque tools
Three units of measurement (N-m, ft-lb, in-lb)
Target torque and tolerances for evaluating the measured value can be individually defined
Operates via the included power supply or batteries (4 x AAA or 1 x 9V block, adapter included) or Micro USB
With integrated optical and acoustic overload protection
The display and keypad are splash-proof; the housing is made of impact-resistant plastic with certification. The display
and keypad are splash-proof; the housing is made of impact-resistant plastic
with certification
Supplied in a durable plastic case
Deviation ± 1%

• Adapter: 1"
• Nm range: 500 – 31500
• Accuracy ±1 %
• Switching between N·m and lbf·ft or lbf·in
• RS232 serial port
• Detection of 1 peak value (inflection point detection)

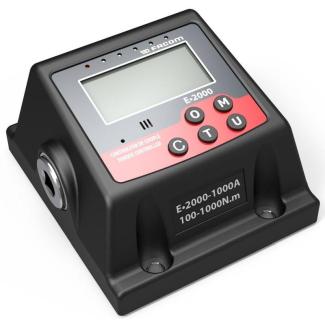

• Adapter: 1/2”, 3/4"
• Nm range: 90 – 1100
• Accuracy ±1 %
• Switching between N·m and lbf·ft or lbf·in
• RS232 serial port
• Peak value detection (inflection point detection)

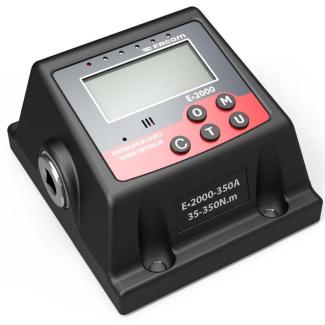

• Adapter: 3/8”, 1/2"
• Nm range: 9 – 320
• Accuracy ±1 %
• Switching between N·m and lbf·ft or lbf·in
• RS232 serial port
• Detection of 1 peak value (inflection point detection)

• Adapter: 1/4”, 3/8"
• Nm range: 0.9 – 55
• Accuracy ±1 %
• Switching between N·m and lbf·ft or lbf·in
• RS232 serial port
• 1 peak value detection (inflection point detection)

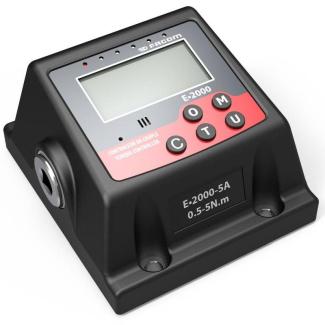

• Adapter: 1/4”, 3/8"
• Nm range: 0.2 – 12
• Accuracy ±1 %
• Switching between N·m and lbf·ft or lbf·in
• RS232 serial port
• Peak value detection (inflection point detection)

Type: "Smart"
Measuring range: 25–500 Nm
Enables torque measurement
Output: 3/4"

Type: "Industry Standard"
Measuring range: 15-300 Nm
Enables torque measurement
Output: 1/2"

Type: "Industry Standard"
Measuring range: 12.5–250 Nm
Enables torque measurement
Output: 3/4"

Type: "Industry Standard"
Measuring range: 50–1000 Nm
Enables torque measurement
Output: 3/4"

Type: "Smart Angle"
Measuring range: 25-500 Nm
Enables torque and angle measurement
Output: 3/4"

Type: "Smart"
Measuring range: 15-300 Nm
Enables torque measurement
Output: 1/2"

Type: "Smart Angle"
Measuring range: 9-180 Nm
Enables torque and angle measurement
Output: 1/2"

Type: "Industry Standard"
Measuring range: 25-500 Nm
Measures torque
Output: 3/4"

Type: "Smart Angle"
Measuring range: 3.8–75 Nm
Enables torque and angle measurement
Output: 3/8"

Type: "Industry Standard"
Measuring range: 0.1–2 Nm
Enables torque measurement
Output: 1/4" Hex

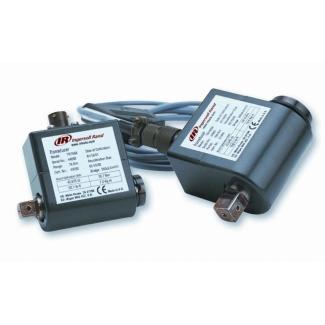

Type: "Industry Standard"
Measuring range: 7.5–150 Nm
Enables torque measurement
Output: 3/8"

Type: "Smart"
Measuring range: 1-20 Nm
Measures torque
Output: 1/4" Hex

Type: "Smart"
Measuring range: 1-20 Nm
Measures torque
Output: 1/4"
