Torque calibration sensors

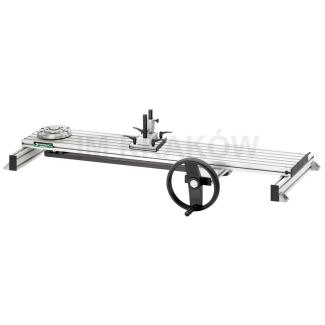

Can be screwed onto mechanical charger No. 7792

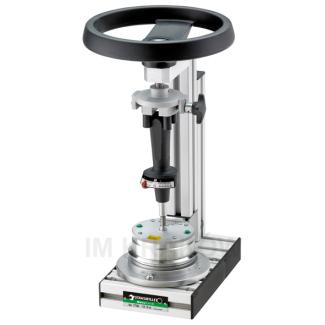

the torque screwdriver for calibration is inserted into the square holder of the transducer and secured with a universal center clamp
the handwheel ensures that the required force is applied in a controlled manner to the torque screwdriver
supplied without transducer or torque screwdriver

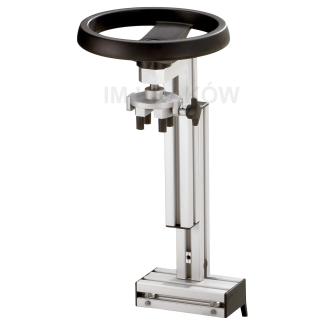

can be screwed onto mechanical charger No. 7791
the calibration torque screwdriver is inserted into the square holder of the transducer and secured using a universal central clamp
the handwheel ensures that the required force is applied in a controlled manner to the torque screwdriver

to display unit No. 7750
can be screwed onto test fixtures

Included:

• Transducer.
• Square adapter.
• USB adapter and cable for transferring measurement data to a personal computer.
• Management software for calibration certificates.

Measurement without displacement of the force application point
Thanks to a special force transmission system, the mechanical calibration device No. 7791 prevents displacement of the force application point during the calibration process.
Driven by a handwheel, the lever mounted under the test rail moves linearly via a spindle.
The linear motion is converted into rotational motion, which acts on the transducer.
The torque wrench intended for calibration remains in a fixed position throughout the entire calibration process.
This prevents measurement errors resulting from a shift in the point of force application.
The torque wrench is automatically aligned horizontally using a low-friction ball bushing.
An additional ball bushing provides frictionless support for the torque wrench.
The resulting reduction in lateral forces acting on the transducer and friction on the torque wrench support leads to a reduction in measurement errors.
Patents pending.
Included:
Transducer.
Square adapter.
USB adapter and cable for transferring measurement data to a personal computer.
Management software for calibration certificates.

Measurement without displacement of the force application point
Thanks to a special force transmission system, the mechanical calibration device No. 7791 prevents displacement of the force application point during the calibration process.
Driven by a handwheel, the lever mounted under the test rail moves linearly via a spindle.
The linear motion is converted into rotational motion, which acts on the transducer.
The torque wrench intended for calibration remains in a fixed position throughout the entire calibration process.
This prevents measurement errors resulting from a shift in the point of force application.
The torque wrench is automatically aligned horizontally using a low-friction ball bushing.
An additional ball bushing provides frictionless support for the torque wrench.
The resulting reduction in lateral forces acting on the transducer and friction on the torque wrench support leads to a reduction in measurement errors.
Patents pending.
Included:
Transducer.
Square adapter.
USB adapter and cable for transferring measurement data to a personal computer.
Management software for calibration certificates.

Measurement without displacement of the force application point
Thanks to a special force transmission system, the mechanical calibration device No. 7791 prevents displacement of the force application point during the calibration process.
Driven by a handwheel, the lever mounted under the test rail moves linearly via a spindle.
The linear motion is converted into rotational motion, which acts on the transducer.
The torque wrench intended for calibration remains in a fixed position throughout the entire calibration process.
This prevents measurement errors resulting from a shift in the point of force application.
The torque wrench is automatically aligned horizontally using a low-friction ball bushing.
An additional ball bushing provides frictionless support for the torque wrench.
The resulting reduction in lateral forces acting on the transducer and friction on the torque wrench support leads to a reduction in measurement errors.
Patents pending.
Included:
Transducer.
Square adapter.
USB adapter and cable for transferring measurement data to a personal computer.
Management software for calibration certificates.

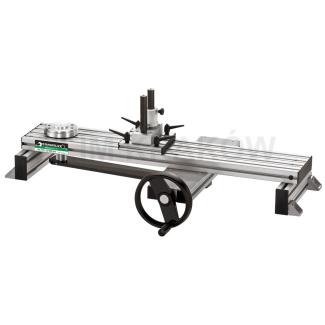

• For Mechanical Drive No. 7791

Measurement possible without shifting the point of force application.
Thanks to a specially designed force transmission system, the No. 7791 mechanical loader avoids the risk of shifting the point of force application during the calibration process
the lever under the test rail is driven in a linear direction by a handwheel acting on the spindle
the linear motion is converted into rotational motion, which acts on the transducer
The torque wrench used for calibration remains in the same position throughout the entire calibration process, which prevents
measurement errors caused by a shift in the point of force application thanks to
a low-friction linear ball bearing, the torque wrench
is automatically leveled when placed in the device
another linear ball bearing ensures frictionless contact with the torque wrench
reducing the lateral forces acting on the transducer and friction at the point of contact with the torque wrench results in a corresponding reduction in measurement errors

with one pair of adapter plates No. 7770-3 to compensate for the height difference between extension unit No. 7791-1 and perfectControl® calibration units No. 7794-1 and No. 7794-2

measurement possible without shifting the point of force application.
thanks to a specially designed force transmission system, the mechanical loader No. 7791 avoids the risk of shifting the force application point during the calibration process
the lever under the test rail is actuated in a linear direction by a handwheel acting on the spindle
the linear motion is converted into rotational motion, which acts on the transducer
The torque wrench used for calibration remains in the same position throughout the entire calibration process, which prevents
measurement errors caused by a shift in the point of force application thanks to
a low-friction linear ball bearing; the torque wrench
is automatically leveled when placed in the device
an additional linear ball bearing ensures frictionless contact with the torque wrench
reducing the lateral forces acting on the transducer and friction at the point of contact with the torque wrench results in a corresponding reduction in measurement errors
protected by national and international patents

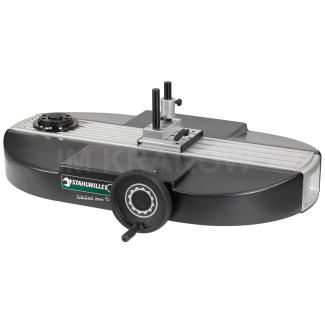

automatically calibrates STAHLWILLE electronic torque and angle wrenches
design protected by national and international patents
same model as perfectControl® No. 7794-2, with the difference that it is additionally adapted for calibrating angle wrenches
Optimal adjustment to working height thanks to motorized height adjustment
Calibration up to 1000 Nmis possible using the easily attachable extension unit No. 7791-1 and adapter plate set No. 7791-4, code 52110491
Supplied without torque wrench, transducer, or notebook

The PerfectControl electronic calibration device with manual drive significantly reduces the effort and time required for calibrating and adjusting torque wrenches.
Measurement without changing the point of force application.
Avoidance of measurement errors thanks to a precisely mounted spindle and an ergonomically shaped knob.
Extremely precise calibration through optimized bearings and square transducer sockets.
Quick and easy transducer replacement thanks to the QuickRelease locking mechanism.
Convenient operation via buttons for clockwise and counterclockwise measurements with automatic speed adjustment.
Time savings by securing the bridge support with an eccentric clamp that can be operated with one hand.
Transfer of measured values via a USB interface to a PC for further processing and archiving.
The calibration certificate can be printed after calibration or saved as a PDF file.
Calibrations of input and output can be documented.
During calibration, the DIN EN ISO 6789 standard is supported in multiple languages. Other standards and manufacturer specifications available upon request.

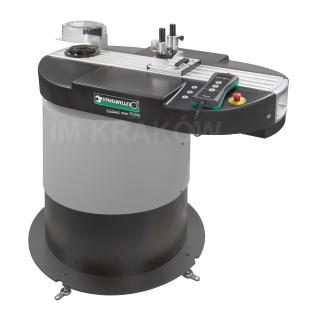

Expandable to the PerfectControl calibration unit No. 7794-3 for angle wrenches
Calibrations up to 1000 Nm using the easy-to-install extension No. 7791-1
Registered design, patents pending.
Trigger and measuring torque wrenches can be calibrated.
Calibration of transducers using torque wrenches No. 7770-100 and 7770-1000 available upon request.

The PerfectControl electronic calibration device with manual drive significantly reduces the effort and time required for calibrating and adjusting torque wrenches.
Measurement without changing the point of force application.
Avoidance of measurement errors thanks to a precisely mounted spindle and an ergonomically shaped knob.
Extremely precise calibration through optimized bearings and square transducer sockets.
Quick and easy transducer replacement thanks to the QuickRelease locking mechanism.
Convenient operation via buttons for clockwise and counterclockwise measurements with automatic speed adjustment.
Time savings by securing the bridge support with an eccentric clamp that can be operated with one hand.
Transfer of measured values via a USB interface to a PC for further processing and archiving.
The calibration certificate can be printed after calibration or saved as a PDF file.
Calibrations of input and output can be documented.
During calibration, the DIN EN ISO 6789 standard is supported in multiple languages. Other standards and manufacturer specifications available upon request.
Expandable to the PerfectControl calibration unit No. 7794-3 for angle wrenches
Calibrations up to 1000 Nm using the easy-to-install extension No. 7791-1
Registered design, patents pending.
Trigger and measuring torque wrenches can be calibrated.
Calibration of transducers using torque wrenches No. 7770-100 and 7770-1000 available upon request.

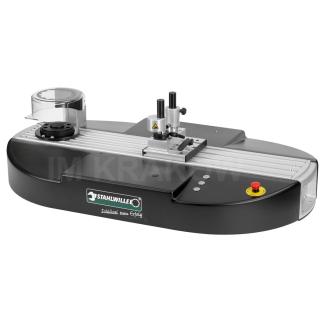

Similar to perfectControl® No. 7794-2, but operation is via an ergonomically designed handwheel
Calibration up to 1000 Nmis possible using the easily attachable extension unit No. 7791-1
protected by national and international patents,
supplied without a torque wrench, transducer, or notebook

The PerfectControl electronic calibration device with manual drive significantly reduces the effort and time required for calibrating and adjusting torque wrenches.
Measurement without changing the point of force application.
Avoidance of measurement errors thanks to a precisely mounted spindle and an ergonomically shaped knob.
Extremely precise calibration through optimized bearings and square transducer sockets.
Quick and easy transducer replacement thanks to the QuickRelease locking mechanism.
Convenient operation via buttons for clockwise and counterclockwise measurements with automatic speed adjustment.
Time savings by securing the bridge support with an eccentric clamp that can be operated with one hand.
Transfer of measured values via a USB interface to a PC for further processing and archiving.
The calibration certificate can be printed after calibration or saved as a PDF file.
Calibrations of input and output can be documented.
During calibration, the DIN EN ISO 6789 standard is supported in multiple languages. Other standards and manufacturer specifications available upon request.
Expandable to the PerfectControl calibration unit No. 7794-3 for angle wrenches
Calibrations up to 1000 Nm using the easy-to-install extension No. 7791-1
Registered design, patents pending.
Trigger and measuring torque wrenches can be calibrated.
Calibration of transducers using torque wrenches No. 7770-100 and 7770-1000 available upon request.

The PerfectControl electronic calibration device with manual drive significantly reduces the effort and time required for calibrating and adjusting torque wrenches.
Measurement without changing the point of force application.
Avoidance of measurement errors thanks to a precisely mounted spindle and an ergonomically shaped knob.
Extremely precise calibration through optimized bearings and square transducer sockets.
Quick and easy transducer replacement thanks to the QuickRelease locking mechanism.
Convenient operation via buttons for clockwise and counterclockwise measurements with automatic speed adjustment.
Time savings by securing the bridge support with an eccentric clamp that can be operated with one hand.
Transfer of measured values via a USB interface to a PC for further processing and archiving.
The calibration certificate can be printed after calibration or saved as a PDF file.
Calibrations of input and output can be documented.
During calibration, the DIN EN ISO 6789 standard is supported in multiple languages. Other standards and manufacturer specifications available upon request.
Expandable to the PerfectControl calibration unit No. 7794-3 for angle wrenches
Calibrations up to 1000 Nm using the easy-to-install extension No. 7791-1
Registered design, patents pending.
Trigger and measuring torque wrenches can be calibrated.
Calibration of transducers using torque wrenches No. 7770-100 and 7770-1000 available upon request.

The perfectControl® electronic calibration unit with electric drive significantly reduces the effort and time required for calibrating and adjusting torque wrenches.
