Distance meters and lasers

• Voltage: 12 V
• Accuracy: 0.3 mm/m
• IP protection class: 54
• Laser classification: Class 2
• Colour of laser line/plumb points: green
• Max. run time with M12 B3 battery: 9h
• Laser projection: 1x horizontal, 1x vertical, 2x plump points and 2x horizontal points
• Self-levelling range: 4°
• Self-levelling time: 3 s
• Working range visible: 38 m
• Working range detector: 50/100 m

• The MILWAUKEE® telescoping laser pole with 3.6 m extension range is ideal to setting up line lasers even on high ceilings.
• The spring loaded swivel head makes setup easy, even at uneven surfaces.

• Voltage: 12 V
• Accuracy: 0.3 mm/m
• IP protection class: 54
• Laser classification: Class 2
• Colour of laser line/plumb points: green
• Max. run time with M12 B3 battery: 9h
• Laser projection: 1x horizontal, 1x vertical, 2x plump points and 2x horizontal points
• Self-levelling range: 4°
• Self-levelling time: 3 s
• Working range visible: 38 m
• Working range detector: 50/100 m

• Accuracy: 0.3 mm/m
• IP protection class: 54
• Laser classification: Class 2
• Colour of laser line: green
• Laser projection: 1x vertical, 1x horizontal
• Self-levelling time: 3 s
• Self-levelling range: 4°
• Working range visible: 30 m
• Working range detector: 50 m
• Battery type: Alkaline
• Compatible laser detector: LLD50 / LRD100
• Weight with battery pack: 0.7 kg

• Set includes:
- M12 3PL - M12™ Green 360° 3 plane laser
- HIVIST - target plate for improved laser visibility
- LLD 50 - detector
- LM 360 - 360° laser mount
- TRP 120 - 1.2 m compact laser tripod
- Track clip
- M12 B4 - 1 x 4.0 Ah
- C12 C - charger 80 min
• Supplied in PACKOUT.

• The MILWAUKEE® compact laser tripod with a 1/4" mounting thread and a flat head design is ideal for setting the height of a horizontal laser line or elevating the laser when needed.
• Height can be adjusted easily from 47 cm to 120 cm.

• Accuracy: ±0.5 / ±1 / ±2 / ±5 / ±10 mm
• Range: 0-100/0-250 m
• IP protection class: 67
• Auto shut off: yes
• Weight with battery pack: 0.19 kg

• The MILWAUKEE® high visibility laser target plate provides fast and visible alignment with a wide magnetic base for floors & ferrous surfaces.
• High contrast reflective surface for use with green lasers.
• The X design provides responsive centering feedback that guides the line to the centre, making the alignment process faster.

• The MILWAUKEE® laser tripod with a 1/4" mounting thread is ideal for setting the height of a horizontal laser line or elevating the laser when needed.
• Height can be adjusted easily from 72 cm to 180 cm.

• The MILWAUKEE® 360° laser mount is an adaptable laser attachment that provides the fastest laser setup.
• Multi-plane rotational adjustment, users can easily attach all MILWAUKEE® lasers to the mount.
• A micro vertical adjustment that makes aligning horizontal lines much faster.

• Range: 50 m
• IP protection class: 54
• Weight with battery pack: 0.23 kg

• Voltage: 12 V
• Accuracy: 0.3 mm/m
• Colour of laser line: Green
• Compatible laser detector: LLD50/LRD100
• Laser classification: Class 2
• Max. run time with M12 B4 battery: 15 h
• Self-levelling range: 4°
• Self-levelling time: 3 s
• Weight with battery pack (M12 B4): 1.5 kg
• Working range detector: 50/100 m
• Working range visible: 38 m

• Max. measurement range: 50 mm
• Range: 0.05 - 50 m
• Accuracy: ± 1.5
• IP protection class: IP 54
• Laser clasification: class 2
• Inclination sensor: no
• Height tracking: no
• Display size: 26 x 37 mm
• Dimensions: 119 x 40 x 32 mm
• Battery type: 2 x AAA
• Weight with battery pack: 0.1 kg

• Max. measurement range: 45 mm
• Range: 0.15 - 45 m
• Accuracy: ± 1.5
• IP protection class: IP 54
• Laser classification: class 2
• LCD display
• Auto-level measurements: no
• Pythagoras function: no
• Inclination sensor: no
• Continuity indicator: no
• Display size: 31.5 x 40 mm
• Dimensions: 105 x 48 x 24 mm
• Battery type: 2 x AAA
• Weight with battery pack: 0.11 kg

• Max. measurement range: 30 mm
• Range: 0.15 - 30 m
• Accuracy: ± 2
• IP protection class: IP54
• LCD display
• Display size: 25 x 25 mm
• Laser classification: class 2
• Auto-level measurements: no
• Pythagoras function: no
• Inclination sensor: no
• Battery type: 2 x AAA
• Dimensions: 101 x 38 x 28 mm
• Weight with battery pack: 0,1 kg

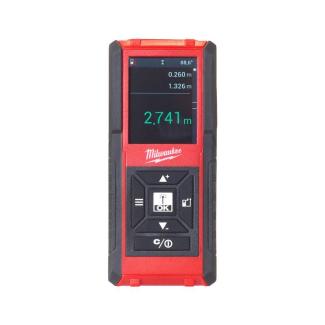

• Max. measurement range: 100 mm
• Range: 0.15 - 100 m
• Accuracy: ± 1.5
• IP protection class: IP 54
• Laser clasification: class 2
• LCD display
• Auto-level measurements: yes
• Pythagoras function: yes
• Inclination sensor: yes
• Height tracking: yes
• Display size: 31.5 x 40 mm
• Dimensions: 113 x 48 x 31 mm
• Battery type: 2 x AAA
• Weight with battery pack: 0.14 kg
