4933478960

Milwaukee

4058546362423

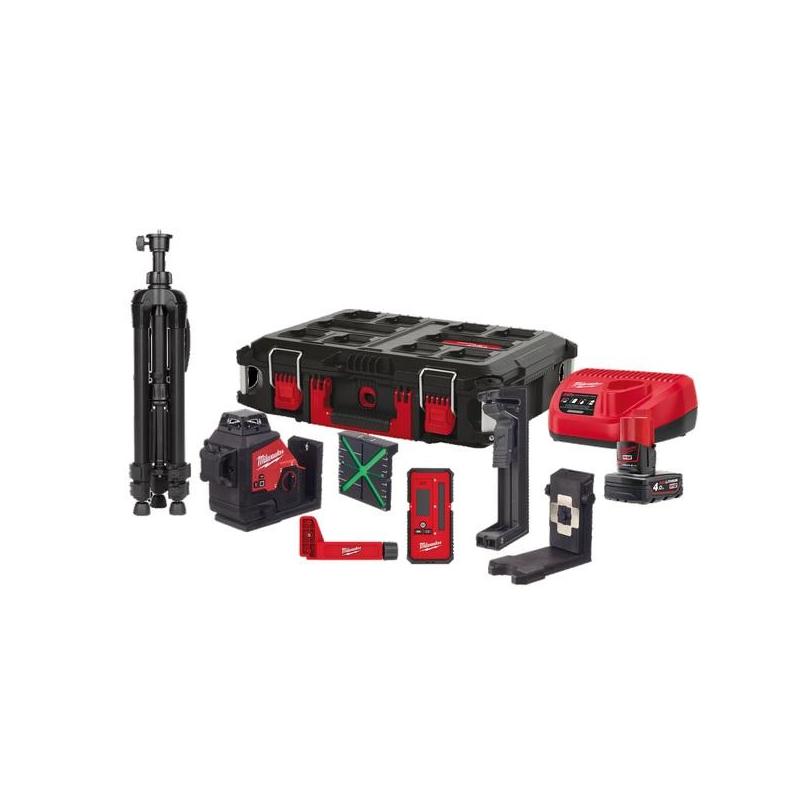

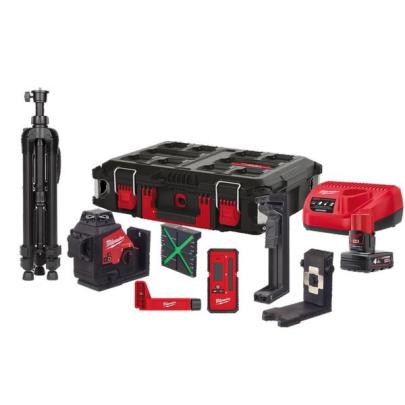

    M12 3PLKIT-401P - M12™ Green 360° 3 plane laser, detector, tripod, 12 V, in case PACKOUT, with 4.0 Ah + charger, 4933478960

    • Set includes:
    - M12 3PL - M12™ Green 360° 3 plane laser
    - HIVIST - target plate for improved laser visibility
    - LLD 50 - detector
    - LM 360 - 360° laser mount
    - TRP 120 - 1.2 m compact laser tripod
    - Track clip
    - M12 B4 - 1 x 4.0 Ah
    - C12 C - charger 80 min
    • Supplied in PACKOUT.

    Warranty: Extended warranty (upon online registration)

    5 159,00

    -10%

    4 643,10 (tax excl.)

    (5 711,01 (tax incl.))

    The lowest price of the product in last 30 days: netto

    Lowest price in the last 30 days

    By buying this product you can collect up to 232 loyalty points. Your cart will total 232 loyalty points that can be converted into a voucher of 46,40 zł.


    More info

    M12 3PL
    • Voltage: 12 V
    • Working range visible: 38 m
    • Working range detector: 50 m
    • Accuracy: 0.3 mm/m
    • Self-levelling range: +/- 4°
    • Drop resistance: 1 m
    • Laser classification: Class 2
    • Colour of laser line: green
    • Max. run time with M12 B4 battery: 15 h

    • M12™ green 360° 3 plane laser provides an all-in-one functionality with one horizontal line and two vertical lines for fast and easy alignment, leveling, squaring,
      and transfers allowing you to easily layout large spaces with one tool.
    • Built with high intensity green diodes to provide maximised visibility - up to 4x better visibility vs red lasers.
    • High intensity green beams provide a working range of 38 m and up to 100 m with a detector.
    • Provides all-day run time of 15+ hours with an M12 B4 battery pack.
    • 3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range and Pendulum Lock Mode to protect components during transport.
    • Integrated magnetic bracket with rear mounted amplified rare earth magnets, 1/4" and 5/8" tripod thread and hang hole - allows attachment to steel stud, wooden stud and tripod.
    • The bracket also provides the laser 330° rotation that pivots on plumb point, with an integrated micro control knob for faster point to point alignment.
    • Robust over-moulded construction with an IP 54 rating, the laser is water/ debris resistant and can withstand up to 1 m drops.
    • Flexible battery system: works with all MILWAUKEE® M12™ batteries.

    HI-VIST
    • The MILWAUKEE® high visibility laser target plate provides fast and visible alignment with a wide magnetic base for floors & ferrous surfaces.
    • High contrast reflective surface for use with green lasers.
    • The X design provides responsive centering feedback that guides the line to the centre, making the alignment process faster.

    LLD50
    • Range: 50 m
    • Accuracy: +/- 0,75 / +/- 1 mm
    • Weight with battery pack: 0,23 kg

    • The MILWAUKEE® LLD50 laser line detector extends laser line functionality up to 50 metres.
    • The LEDs on front and back allow easy and accurate detection of the laser beam to improve the set-up process.
    • Rare earth magnets located on two sides of the detector allow it to easily attach to metal surfaces, ideal for suspended ceiling installations.
    • The included clamp is ideal for attaching to non-metal surfaces for setting elevations.
    • The detector has adjustable audio feedback and has over 65 hours of run time with included AA batteries.
    • Compatible with all MILWAUKEE™ line & plane lasers.
    • Adjustable accuracy settings for greater precision.
    • IP54 protects detector from jobsite conditions.
    • 1 m impact resistance.

    LM360
    • The MILWAUKEE® 360° laser mount is an adaptable laser attachment that provides the fastest laser setup.
    • Multi-plane rotational adjustment, users can easily attach all MILWAUKEE® lasers to the mount.
    • A micro vertical adjustment that makes aligning horizontal lines much faster.
    • The amplified rare earth magnets on both sides provide a strong hold even on thin steel stud material.
    • Integrated screw and nail hang holes make setup easy and efficient in any environment.
    • Integrated 1/4" & 5/8" thread to easily attach to most tripods.

    TRP120
    • The MILWAUKEE® compact laser tripod with a 1/4" mounting thread and a flat head design is ideal for setting the height of a horizontal laser line or elevating the laser when needed.
    • Height can be adjusted easily from 47 cm to 120 cm.
    • 29 cm elevating range for fine adjusting the height.
    • Laser can be mounted to the bottom of the tripod with the LM360 bracket (not included) for low level applications like socket installation.
    • Durable and light weight aluminium frame for a longer life.

    • Supplied in case (PACKOUT) with battery and charger.

    Data sheet

    SymbolM123PLKIT-401P
    Nazwalaser 3-płaszczyznowy 360°, detektor, statyw, 12 V
    Stopień ochrony IPIP 54
    Typ akumulatoraLi-Ion
