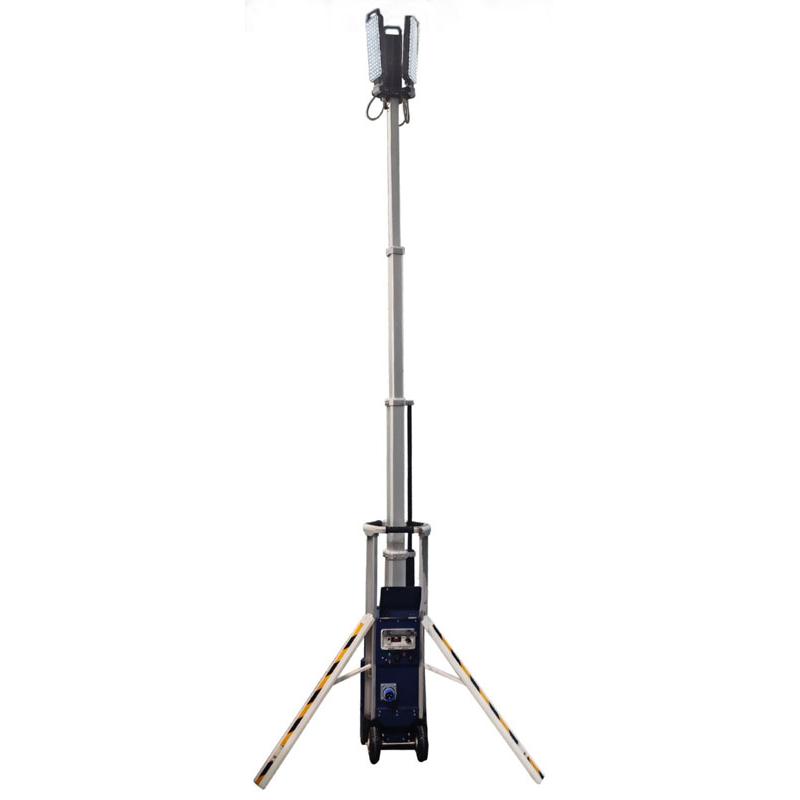

TTL-48000 - Battery-powered lighting mast 48000 lm

Symbol: TTL-48000
Lena Lighting

• Brightness: 4,800 / 12,000 / 24,000 / 36,000 / 48,000 lm
• Runtime: 40 / 16 / 8 / 5 / 4 h
• Rated power: 10% 30 W / 25% 75 W / 50% 150 W / 75% 225 W / 100% 300 W
• Illuminated area: 980 m² (min. 5 lux)
• Beam angle: 60°
• Color temperature (CCT): 5000 K
• Protection rating: IK08 / IP65 (lighting) / IP54 (chassis)
• Dimensions (min): 358 × 385 × 1088 mm
• Dimensions (max): 1303 × 1129 × 3800 mm
• Weight (mast only): 36 kg
• Weight (with battery): 46 kg

Delivery cost: from 15 PLN net Check out >

18,536.00 zł 17,609.20 zł net

(21,659.32 zł gross)

The lowest price of the product in last 30 days: 17609,20 zł

Buy on lease

• Input voltage: 100–110 VAC / 220–240 VAC / 50 Hz / 60 Hz
• Battery capacity: 1.3 kWh
• Battery type: LiFePO₄
• Power factor: >0.92
• Electrical class: Class I
• Dimmable: yes
• Plug: universal (UNI-SCHUKO)
• Operating temperature: –10°C to +45°C
• Storage temperature: –40°C to +80°C
• Sound emission: <15 dB(A)
• Max. height: 3.8 m
• Mast lifting system: electric
• Mast rotation: 340°
• Operation: manual
• Max. wind resistance: 30 m/s
• Housing finish: UV-stabilized powder coating
• Certifications: CE
• Lifetime L80 B50 (LED): >100,000 h

• A new definition of professional mobile lighting: The TTL-48000 combines the versatility of a compact lighting mast with the independence provided by a battery system, offering smooth light control and mobility in one innovative solution.
• The TTL-48000 can be equipped with one or two batteries.
• The mast includes a battery that can be charged directly inside the mast without the need for an external charger.
• Combined with the mast’s low weight, the user gets a fully mobile lighting tower.
• Designed for use on railways, by emergency services, on construction sites, and in mines.
• A compact lighting tower with an integrated battery is the perfect solution for uniformed services and temporary workplace lighting.

Symbol: TTL-48000
Nazwa:
Waga [kg]: 46.00
Stopień ochrony IP: IP 54/65
Jasność: 4800/12000/24000/36000/48000 lm

Download

TTL-48000 TTL-48000.pdf (3.1MB)
