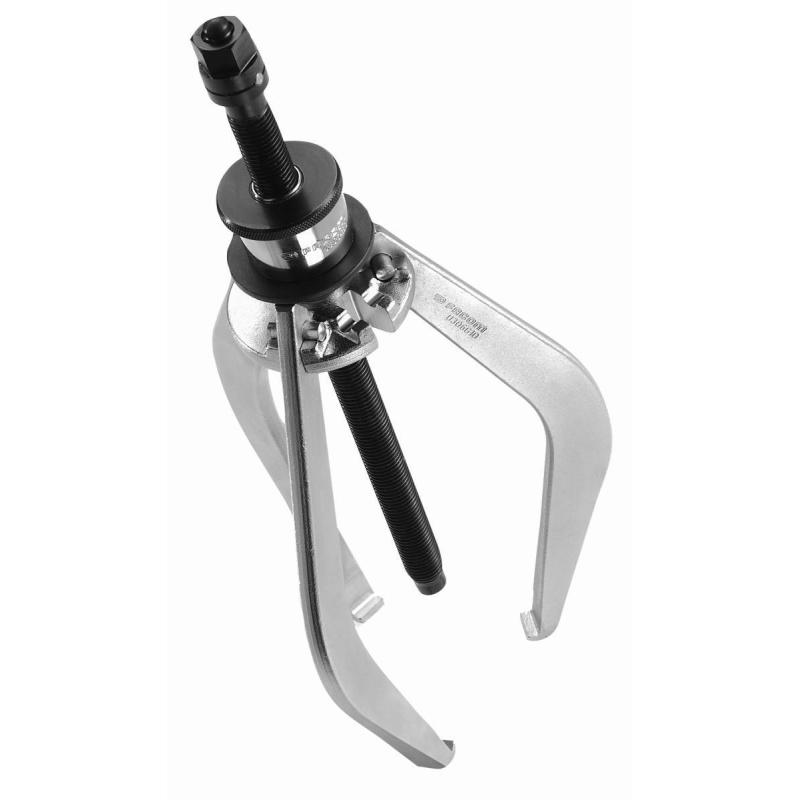

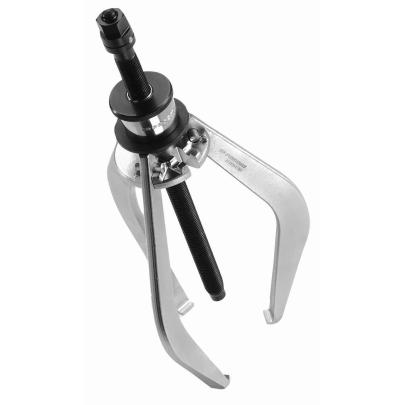

U.306-180 - puller with external and internal shank, 4 T

• Versatile: can be mounted with 2 or 3 clamps.

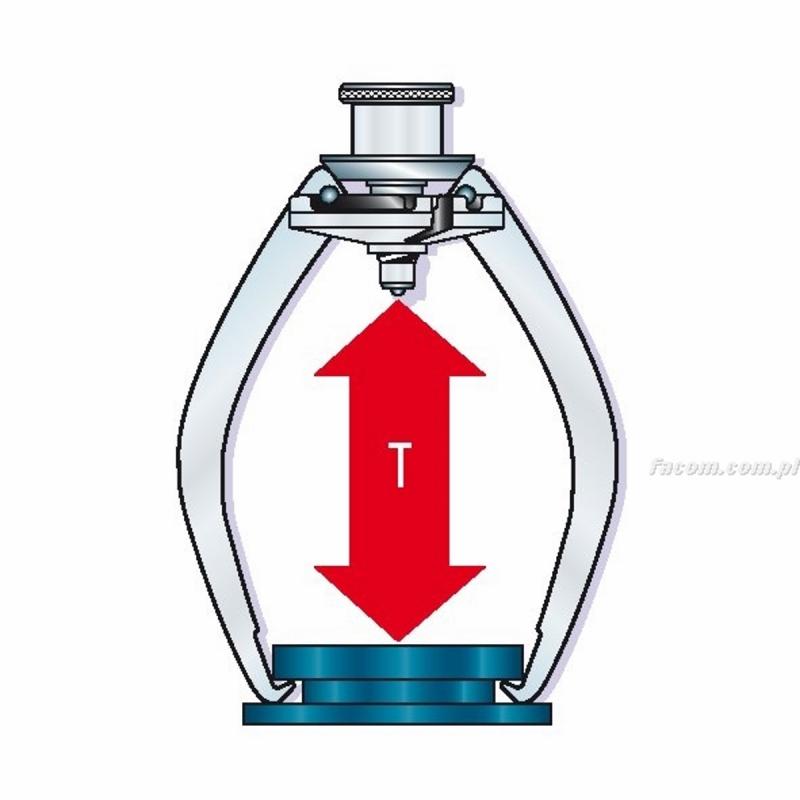

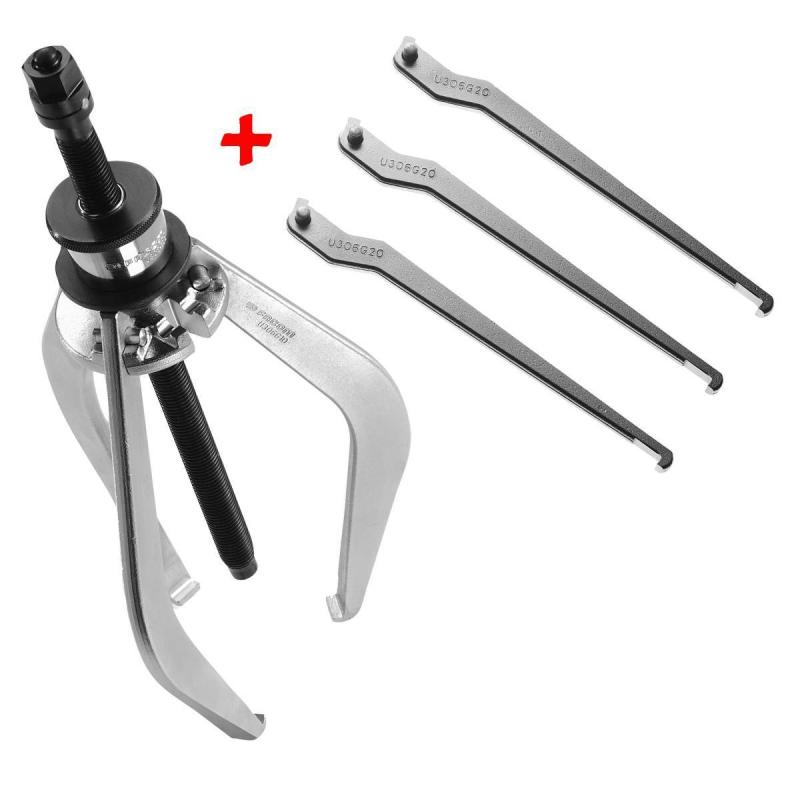

Can be converted into a tensioner with an internal grip using U.306G2 clamps + U.306-4 screw or U.306G20 clamps + U.306-2 screw.
• Convenience: puller with self-clamping jaws via a return spring. The puller is held on the bearing even when not under tension.
• Safety: jaws locked onto the bearing via a knob. No risk of the puller falling off the bearing.
Torque-limiting screw: the pin shears off if the permissible torque is exceeded. Supplied with 2 spare pins.
Set of 3 spare pins: see the spare parts table based on the puller’s force.
• Adaptable auxiliary devices for pullers: U.306M inertia hammer (direct mounting) and U.40 frame puller (mounting with U.306A1 ring and nut, to be ordered separately).
• The U.306-260 puller is supplied with a U.306-3 screw equipped with an extension.
