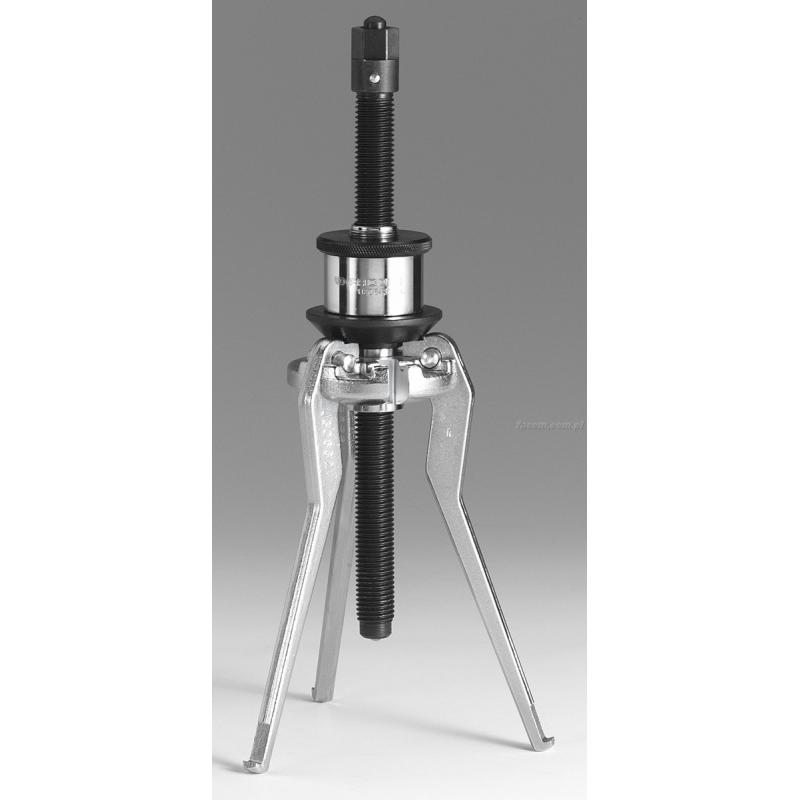

U.306A130N - puller with internal shank, 3 T

• Versatile: can be mounted with 2 or 3 clamps.
Can be converted into a tensioner with an external grip using U.306G1 clamps + U.306-4 screw, or U.306G10 clamps + U.306-2 screw, or U.306G15 clamps + U.306-3 screw (supplied with an extension).

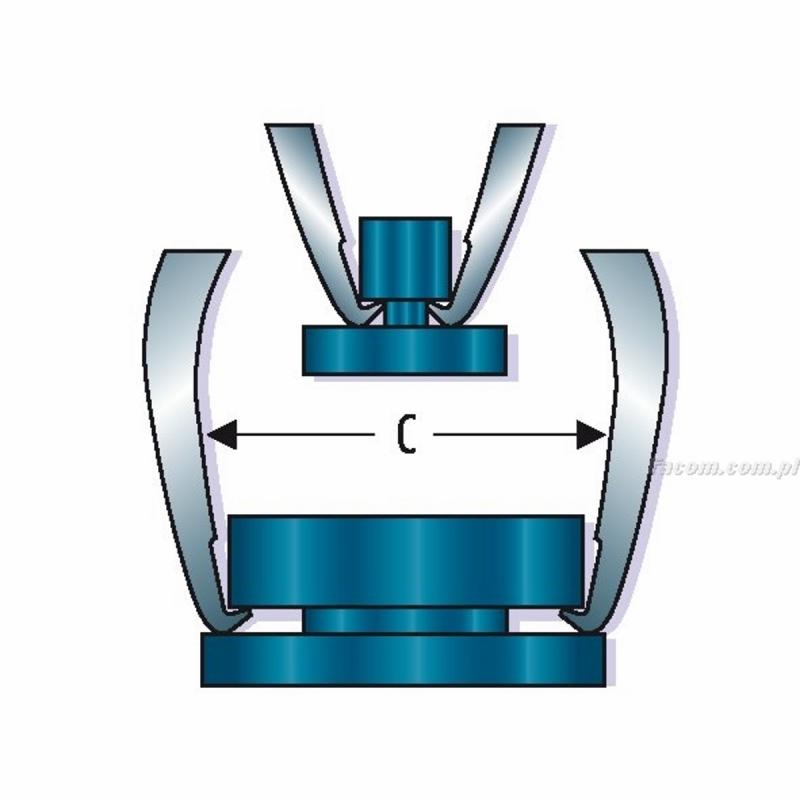

• Convenience: puller with self-clamping jaws via a return spring. The puller is held on the bearing even when not under tension.
• Safety: jaw lock on the bearing via a knob. No risk of the puller falling off the bearing.
Torque-limiting screw: the pin shears off if the permissible torque is exceeded. Supplied with 2 spare pins.
Set of 3 spare pins: see the spare parts table based on the puller’s force.
• Adaptable auxiliary devices for pullers: U.306M inertia hammer (direct mounting) and U.40 frame puller (mounting with U.306A1 ring and nut, to be ordered separately).
