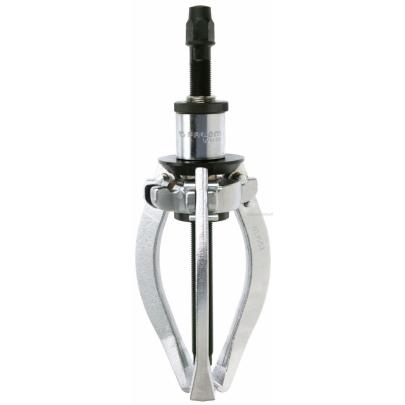

U.310-170 - puller with external shank 10 T

Symbol: U.310-170
EAN: 3148510752051
Facom

Weight [t]: 10
L x W x H [mm]: 143 x 300 x 365
Legs: U.310G1
Screw: U.20B1, 24 mm

Warranty: lifetime warranty

Lead time: 2 to 12 days

Delivery cost: from 15 PLN net Check out >

2,332.53 zł 2,099.28 zł net

(2,582.11 zł gross)

The lowest price of the product in last 30 days: 1998,26 zł

Buy on lease

• Versatile: can be mounted with 2 or 3 clamps.
Can be converted into a clamp with an internal grip using U.310G3 clamps + U.20B1 screw.
• Convenience: clamp with self-locking jaws via a return spring. The puller is held on the bearing even when not under tension.
• Safety: jaws locked on the bearing using a knob. No risk of the puller falling off the bearing.
• Adaptable auxiliary tools for pullers: U.3 hydraulic screw and U.2 inertia hammer.

Symbol: U.310-170
Name: ściągacz z chwytem zewnętrznym 10T
Weight [kg]: 4.60

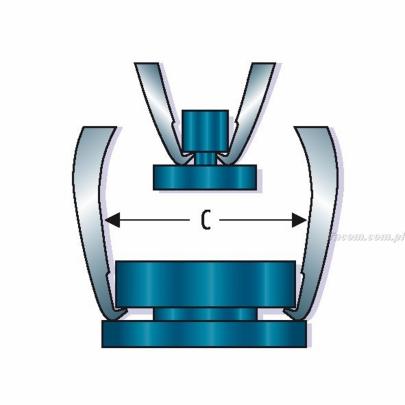

Minimum grip [mm]: 15.00
Max grip [mm]: 170.00

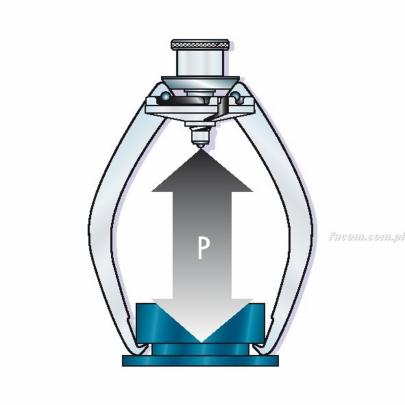

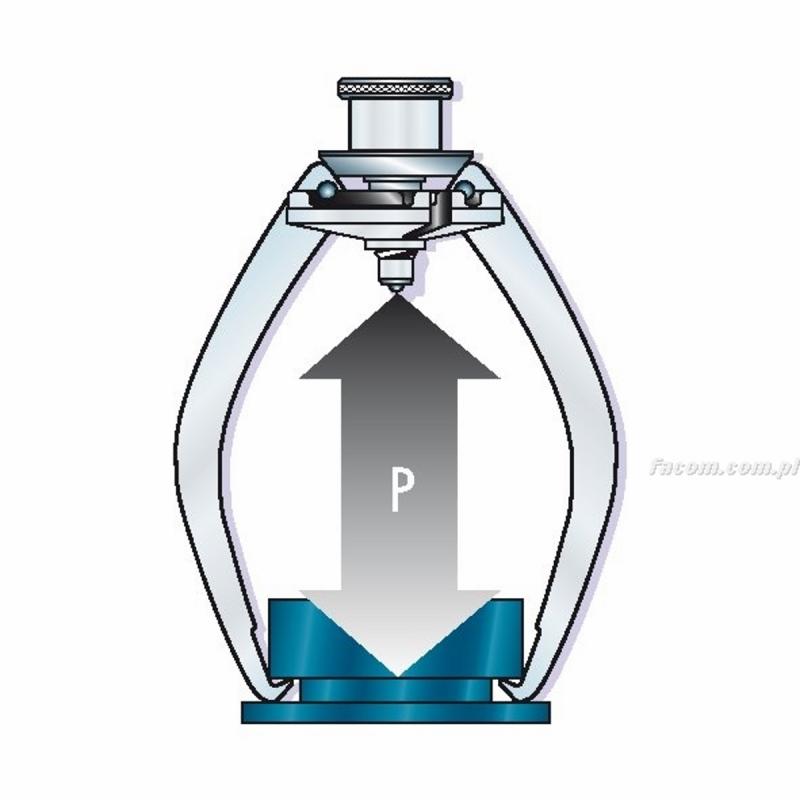

P [mm]: 170.00
Force [t]: 10.00

Download

facom_f13_pl_0633.pdf facom_f13_pl_0633.pdf (1.88MB)
