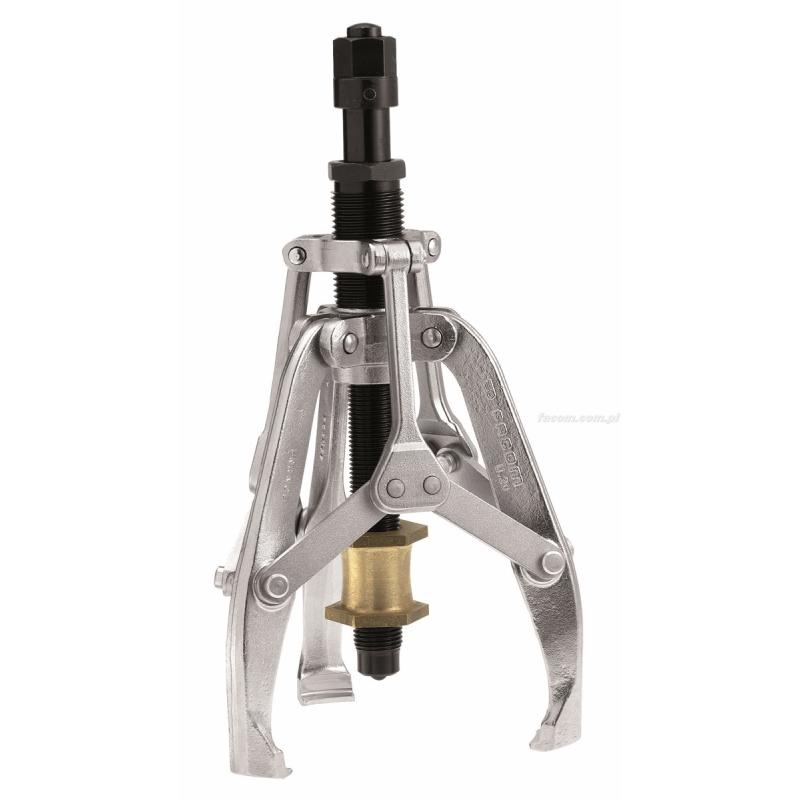

U.20 - puller with external grip and short jaws 7 T

Symbol: U.20
EAN: 3148510667003
Facom

Weight [t]: 7
L x W x H [mm]: 120 x 265 x 305
Feet: U.20SE4
Screw: U.20-1S, 24 mm

Warranty: lifetime warranty

Lead time: 2 to 12 days

Delivery cost: from 15 PLN net Check out >

2,056.58 zł 1,850.92 zł net

(2,276.63 zł gross)

The lowest price of the product in last 30 days: 1761,86 zł

Buy on lease

• Safety: The claws are locked onto the bearing using a center nut. No risk of the puller falling off the bearing.
Screw with torque limiter. The pin shears off if the maximum torque is exceeded. Supplied with 2 spare pins.
Set of 3 spare pins: U.306-24J3.
• Equipped with an anti-rotation ring U.20-12.
The ring secures the screw when using a rod to prevent the puller from rotating.
• Adaptable auxiliary devices for pullers: inertia hammer U.2.

Symbol: U.20
Name: ściągacz z chwytem zewnętrznym z łapami krótkimi 7T
Weight [kg]: 3.50

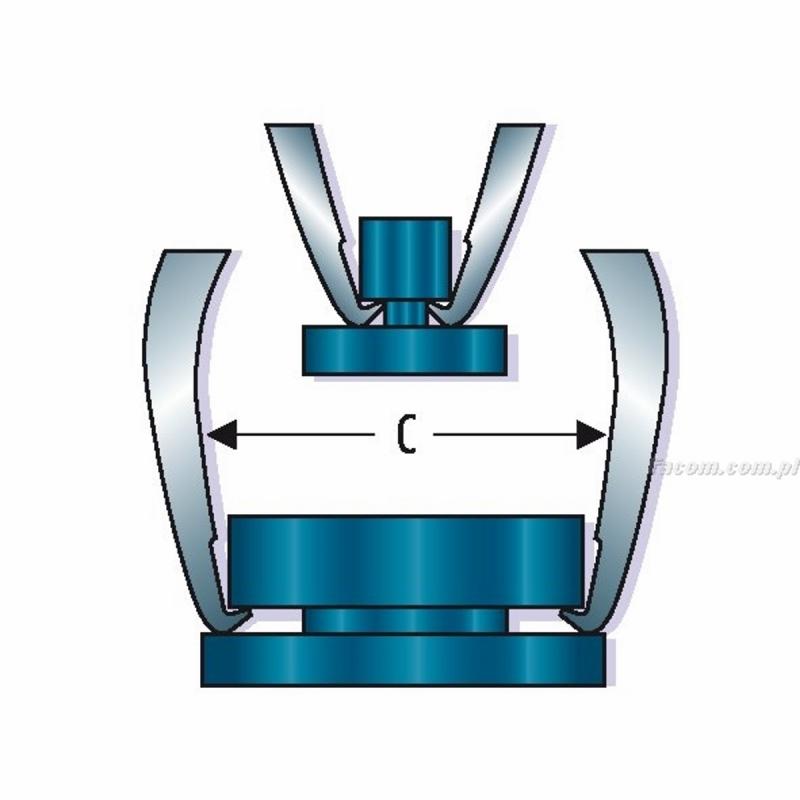

Minimum grip [mm]: 25.00
Max grip [mm]: 170.00
P [mm]: 160.00
Force [t]: 7.00
